Foil Bridge Completion and Compensation Circuits
_ _
_ _
_ _
_ Foil Bridge Completion, Compensation Circuites
_ _
_ _
_ _
_

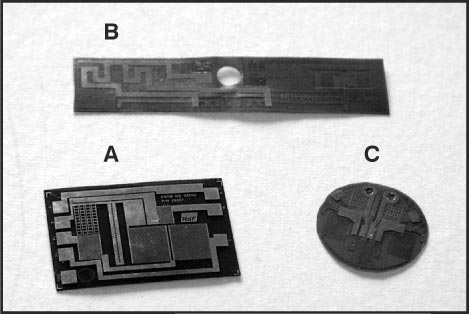

A. Bridge Completion
B & C. Compensation circuits
_

_ _

Element Materials

Temperature Sensitive:
Copper
Nickel
Nickel/iron

Non-Temperature Sensitive:
Constantan

 _ _ _

Laminate

Kapton® film with acrylic or polymide appropriate for temperature range.

Small laminated foil circuits to provide bridge completion and load cell compensation capability.

Bridge Completion units can be provided for use with up to 3 active strain gages. Load cell compensation for any or all of the following can be provided: Temperature, Young's modulus, Bridge Balance and Sensitivity.
