Cryogenic RTD Sensors
_ _
_ _
_ _
_ Cryogenic Hollow Annulus
_ _
_ _
_ _
_

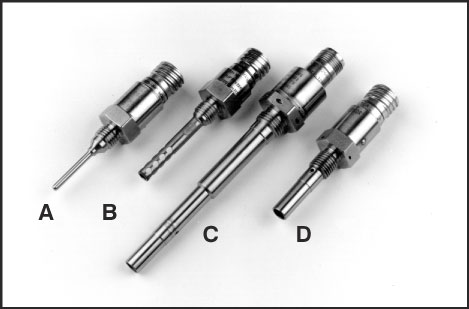

A. 1/8" Diameter LN2 RTD
B. Hollow Annulus Exposed LH2 RTD
C. Hollow Annulus LH2 RTD
D. Cryogenic Hollow Annulus RTD
_ _
RdF’s exclusive hollow annulus elements combine fast response with
high pressure capability and ruggedness.
_ Specifications
_ _
_

Temperature Range
–268 to +260°C
(–450 to 500°F)

Material
Stainless Steel
Inconel

Element
Platinum fine wire:
0.003923 Ω/Ω/°C, required for LH2
0.00385 Ω/Ω/°C, applicable for LN2

Platinum thin film:
0.00385 Ω/Ω/°C, applicable to LN2



Pressure Rating
Up to 20,000 psi

Vibration
>50g
20 to 2000 Hz

Resistance @ 0°C
100, 1000, 1380, 2500Ω

Response time
<0.5 sec.
