21B |

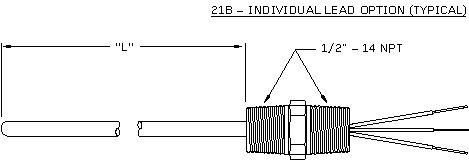

14" Diameter Sheathed Platinum Probe, Rigid Mount to Fitting |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
|
![](images/gray6.gif) |
![](images/spacer.gif) |
![](images/gray6.gif) |
RTD RESISTANCE SPECIFICATIONS (Ohms @ 0°C) |
![_](../images/spacer.gif) |
![](images/spacer.gif) |
10
11
T01
20
21
T05
T10
102
112
T012 |
100 ± 0.1 (a = 0.003924 Ω/Ω/°C) RdF Ref. Std.
100 ± 0.1 (a = 0.00385 Ω/Ω/°C) IEC/DIN Std.
100 ± 0.12 (a = 0.00385 Ω/Ω/°C) thin film
200 ± 0.2 (a = 0.003924 Ω/Ω/°C)
200 ± 0.2 (a = 0.00385 Ω/Ω/°C)
500 ± 0.6 (a = 0.00385 Ω/Ω/°C) thin film
1000 ± 1.2 (a = 0.00385 Ω/Ω/°C) thin film
100 ± 0.1 Dual element (a = 0.003924 Ω/Ω/°C)
100 ± 0.1 Dual element (a = 0.00385 Ω/Ω/°C)
100 ± 0.12 Dual element (a = 0.00385 Ω/Ω/°C) thin film |
![_](../images/spacer.gif) |
|
![](images/gray6.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
CONNECTION HEAD (see connection head table) |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
|
![](images/gray6.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
SERVICE PARAMETER - Sinusoidal Vibration 20Hz to 2kHz |
![_](../images/spacer.gif) |
![](images/spacer.gif) |
S
H |
Standard construction (25 g wire-wound, 80 g thin film)
Heavy duty construction (up to 50 g) (single wire element only) |
![_](../images/spacer.gif) |
|
![](images/gray6.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
PROBE LENGTH |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
(Specify L in inches, >60" requires support) (see photo)
Std. Const: 3" min, Heavy Duty: 4" min. |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
NUMBER OF LEADS |
![_](../images/spacer.gif) |
A
B
C
D
E
X3
AX3
X4
AX4 |
Single element, 2 wires any length
Single element, 3 wires 36" or under in length
Single element, 4 wires 36" or under in length
Dual element, 2 wires per element
Dual element, 3 wires per element
Single element, 3 wire cable over 36"
Adds stainless steel armor excluding last 5"
Single element , 4 wire cable over 36"
Adds stainless steel armor excluding last 5" |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
ARMOR LENGTH
Specify “X” in inches (ie. A0= no armor,
A60 = 60 inches) (Single element only) |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
![_](../images/spacer.gif) |
![](images/gray6.gif) |
![](../../images/spacer.gif) |
![](../../images/spacer.gif) |
![](images/gray6.gif) |
LEAD LENGTH - Specify in inches (4" Standard) |
