R-IMM // Immersible RTD CAPSULES
_ _
_ _
Overview of RdF Temperature Sensor Applications
The Entire RdF Product Catalog, Online, and with Printer-Friendly Versions of Each Data Sheet
Informative Articles with RdF Temperature Sensor Application Information
_
All about RdF Corporation; History, Reps & Distributors, Location
Coming Soon!
Coming Soon!
_

Overview Performance Specs Ordering Specs
HTML Printer Friendly /Help with Printing

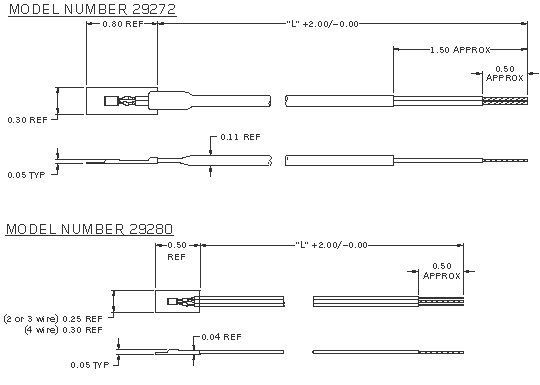

Dimensional Drawing
RTD Capsules Drawing
                                        Ordering Specifications
  29272   RTD with FEP sensor and lead cable encapsulation
  29280   RTD with PFA sensor and lead encapsulation

   RTD RESISTANCE SPECIFICATION (Ω @ O°C)
   T01 100Ω ±0.12Ω @ 0°C, 0.06"x0.1 sensor   (a = 0.00385 Ω/Ω/°C International Grade IEC 751 Class B)
   T10 1000Ω ±1.2Ω @ 0°C, 0.08"x0.13 sensor  (a = 0.00385 Ω/Ω/°C International Grade IEC 751 Class B)
   H10 1000Ω ±1.2Ω @ 0°C, 0.07"x0.1 sensor   (a = 0.00375 Ω/Ω/°C Industrial Grade Class B)

      NUMBER OF LEADS:
      A      2 wire
      B      3 wire
      C      4 wire (29280 only)

   LEAD LENGTH in inches (12 inches standard)
_
_
29272
_
_
–
T10
_
_
–
A
_
_
–
72
_
_
–  Typical write-up for 29272 _
_
29280
_
_
–
T01
_
_
–
C
_
_
–
12
_
_
–  Typical write-up for 29280


_
