T-STK // Surface Thermocouples
_ _
_ _
Overview of RdF Temperature Sensor Applications
The Entire RdF Product Catalog, Online, and with Printer-Friendly Versions of Each Data Sheet
Informative Articles with RdF Temperature Sensor Application Information
_
All about RdF Corporation; History, Reps & Distributors, Location
Coming Soon!
Coming Soon!
_

OverviewPerformance SpecsOrdering Specs
Dimensional Drawing

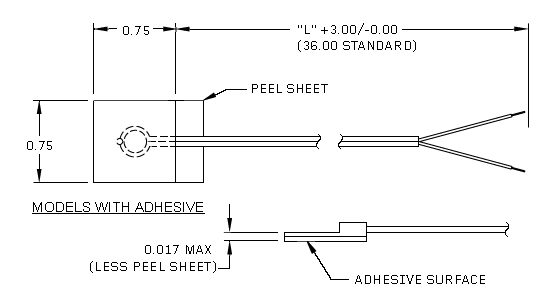

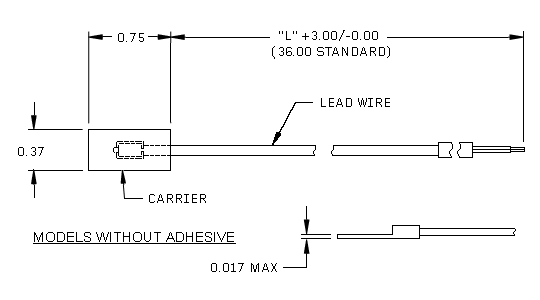

Stikon Surface Thermocouple Drawing

Ordering Specifications
_   ANSI
  TC		 _    POSITIVE
   LEAD		 _ POSITIVE LEAD
COLOR		 _  NEGATIVE LEAD
(RED)		 _ WITHOUT ADHESIVE
PART NO. – LEAD LENGTH*		 _ WITH ADHESIVE
PART NO. – LEAD LENGTH*		 _
_ E _    CHROMEL _    PURPLE _    CONSTANTAN _    26721 – 36 _    26896 – 36 _
_ T _    COPPER _    BLUE _    CONSTANTAN _    26722 – 36 _    26895 – 36 _
_ K _    CHROMEL _    YELLOW _    ALUMEL _    26723 – 36 _    26894 – 36 _
_ J _    IRON _    WHITE _    CONSTANTAN _    26724 – 36 _    26893 – 36 _
*Note: 36" Lead Length is standard. Specify Lead Length in inches if different (ex. 26894-60).
