DATA SHEET T-STK

Available with or without Pressure Sensitive Adhesive

_ Low Mass
_ Flexible
_ Insulated
_ Fast Response
_ Rugged Construction
_ Economical
_ Flattened Junction

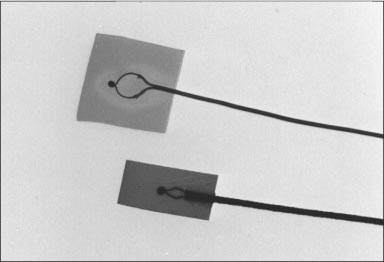

Low cost, versatile RdF Stikon® thermocouple can be used for a wide variety of surface temperature measurements. The thermocouple is embedded in a paper-thin laminate intended for surface applications. RdF Stikon® thermocouples are available with factory applied pressure sensitive adhesive. You may also purchase them without pre-applied cement so you can select the adhesive or clamp for extended temperature capability.
_   ANSI
  TC		 _    POSITIVE
   LEAD		 _  POSITIVE LEAD
 COLOR		 _  NEGATIVE LEAD
 (RED)		 _ WITHOUT ADHESIVE
PART NO. – LEAD LENGTH*		 _ WITH ADHESIVE
PART NO. – LEAD LENGTH*		 _
_ E _    CHROMEL _    PURPLE _    CONSTANTAN _    26721 – 36 _    26896 – 36 _
_ T _    COPPER _    BLUE _    CONSTANTAN _    26722 – 36 _    26895 – 36 _
_ K _    CHROMEL _    YELLOW _    ALUMEL _    26723 – 36 _    26894 – 36 _
_ J _    IRON _    WHITE _    CONSTANTAN _    26724 – 36 _    26893 – 36 _

*Note: 36" lead length is standard. Specify lead length in inches if different (ex. 26894-60)
Teflon® and Kapton® are registered trademarks of Dupont

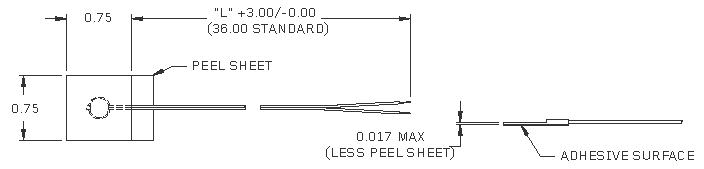

Models with Adhesive – 26893, 26894, 26895, 26896 (see Ordering Specifications)
Carrier:
  Total Thickness:
  Isolation Thickness:
  Cement Type:
  Adhesion Peel:
  Breaking Strength:
  Operating Temperature:
  Size of Carrier:
  Lead Wire Material:
  Lead Wire Length:

   0.001" Kapton®
0.017" max over sensor
0.005" under flattened junction including adhesive layers
0.002" Silicone
20 oz. /inch
30 lbs. /inch
–100° to 500°F (400°F on Type T) continuous
0.75" x 0.75"
#30 AWG Solid T/C wire with PFA Teflon® Insulation, fused parallel
36" Standard. Specify lead length in inches if different. (Ex. 26894-72)

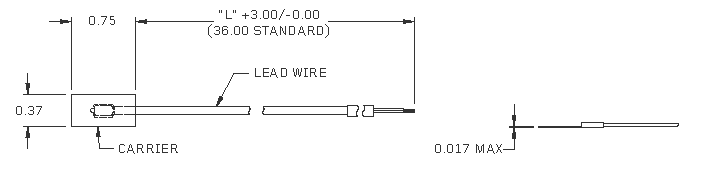

Models without Adhesive – 26721, 26722, 26723, 26724 (see Ordering Specifications)
Carrier
Total Thickness
Isolation Thickness
Operating Temperature
Size of Carrier
Lead Wire Material
Lead Wire Length
   0.001" Kapton® over 0.001" Fiberglass over junction, 0.003" Kapton® under junction
0.017" max over sensor
0.003" under flattened junction
–300° to 500°F (400° F on Type T) continuous, 700°F short term clamped
0.37" x 0.75"
#30 AWG Solid T/C wire with Fiberglass Insulation and overwrap, parallel lay
36" Standard. Specify lead length in inches if different. (Ex. 26723-12)
