OverviewPerformance SpecsOrdering Specs

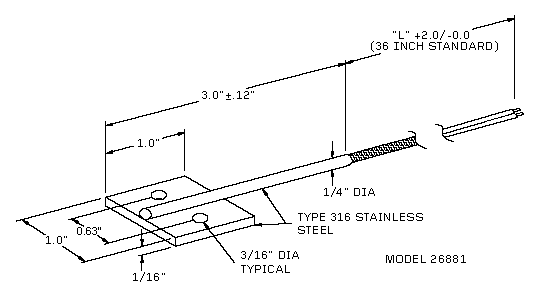

Dimensional Drawing
T-HD Drawing
   26881    Heavy Duty Industrial Thermocouple Surface Sensor

     THERMOCOUPLE TYPE
      J       Iron/Constantan
      K      Chromel/Alumel
      T      Copper/Constantan
      E      Chromel/Constantan

     JUNCTION TYPE
     G      Grounded Junction
     U      Ungrounded Junction

   LEAD LENGTH in inches (36 inches standard)


_
_
26881
_
_
–
K
_
_
–
U
_
_
–
36
_
_
– >  Typical write-up for 26881 _
