22314
22421 |

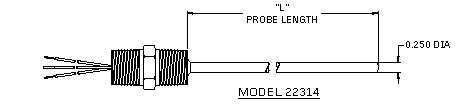

1/4" Dia 300 Series SST Sheathed Rigid RTD Probe Assembly, hex fitting with fail-safe pressure seal.

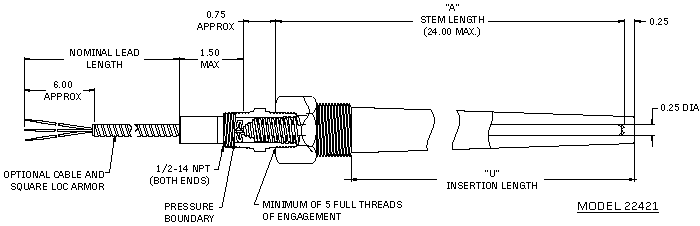

1/4" Dia 300 Series SST Sheathed Spring Loaded RTD Probe Assembly with fail-safe pressure seal. |
|
|
|
|
|
|
RTD RESISTANCE SPECIFICATION (Ohms @ 0°C)
|
|
T01
T10
|
100 ±0.12 (a
= 0.00385 Ω/Ω/°C)
thin film, IEC 751
1000 ±1.2 (a
= 0.00385 Ω/Ω/°C)
thin film, IEC 751 |
|
|
|
|
|
PROBE LENGTH - See Drawings |
|
| "L" |
|
For 22314, specify probe length in inches.
For 22421, specify thermowell insertion length “A” (bore length) in inches |
|
|
|
|
|
PROBE LAG HARDWARE - Stainless Steel (22421 only)
|
|
A
FX |
Stainless steel hex nipple (Standard)
(Union/nipple extension), specify min. 3" plus 1" increments to 12" max. |
|
|
|
|
|
CONNECTION HEAD
|
|
D
K
S
T |
|
Without connection head
DIN B cast aluminum (up to 200°F ambient)
Other per sales order
Transmitter (specify or supply with connection head)
(See X-2910 datasheet) |
|
|
|
|
|
LEAD WIRE CONFIGURATION
|
|
A
B
X2
AX2
X3
AX3 |
Single element, 2 wires 36" or under in length
Single element, 3 wires 36" or under in length
Single element, 2-wire cable over 36"
Adds stainless steel armor excluding last 5"
Single element, 3-wire cable over 36"
Adds stainless steel armor excluding last 5"
|
|
|
|
|
|
LEADWIRE LENGTH
( ) Specify in inches |
|
|
 |
 |
|
|
|
|
|
|
