Overview Performance Specs Ordering Specs

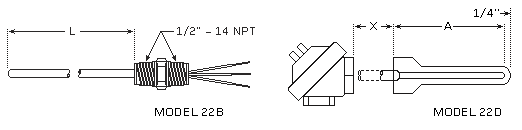

  Dimensional Drawing
22B, 22D



RdF explosion proof assemblies are approved
for installations in Class I Div.1 Groups B, C, D;
Class II Div. 1 Groups E, F, G; and Class III
hazardous locations. The spring-loaded or fixed
sheathed platinum RTD units suit applications
worldwide. Multiple standard options enable the
user to customize a configuration for new or
replacement applications. RdF’s superior
proprietory stainless steel spring-load
ensures fail-safe thermal contact while
preventing any sheath rotation during vibration.

Three basic styles of construction:
(1) Fixed sheath
(2) Spring-loaded sheath
(3) Spring-loaded sheath with lagging.
Detailed dimensions for thermowells
are on Data Sheet T-WELLS


Orderin Specifications

22B
22D

Rigid Explosion Proof Platinum RTD Assembly with Connection Head
Spring-Loaded Explosion Proof Platinum RTD Assembly with Connection Head

    RTD Resistance Specification (ohms @ O°C)
10
11
T01
20
21
T05
T10
102
112
T012

100
100
100
200
200
500
1000
100
100
100

 ± 0.1
 ± 0.1
 ± 0.12
 ± 0.2
 ± 0.2
 ± 0.6
 ± 1.2
 ± 0.1
 ± 0.1
 ± 0.12
(a = 0.003924 Ω/Ω/°C) Reference Standard
(a = 0.00385 Ω/Ω/°C) IEC/DIN Standard
(a = 0.00385 Ω/Ω/°C) Thin Film
(a = 0.003924 Ω/Ω/°C)
(a = 0.00385 Ω/Ω/°C)
(a = 0.00385 Ω/Ω/°C) Thin Film
(a = 0.00385 Ω/Ω/°C) Thin Film
(a = 0.003924 Ω/Ω/°C) Dual Element
(a = 0.00385 Ω/Ω/°C) Dual Element
(a = 0.00385 Ω/Ω/°C) Thin Film, Dual Element
4      Sheath Diameter 1/4" only
S      Sheath Material – S = 316 SS (Thin Film in S only), I = Inconel
Service Parameter – Sinusoidal Vibration 20Hz to 2kHz
S
H

Standard construction (25g wire-wound, 80g thin film)
Heavy duty construction (up to 50g) (Single Wire Element Only)

Probe Length 22B – “L” in inches - see drawing
(3" min., 4" min. on heavy duty construction)
Stem Length 22D – “A” in inches -see drawing
(2" min., 3" min. on heavy duty, X + A = 24" max.)
Number of Leads
A
B
C
D
E
Single element, 2 wires
Single element, 3 wires
Single element, 4 wires
Dual element, 2 wires per element
Dual element, 3 wires per element
Lead Length in Inches (4" STD.)
_ Connection Head
G Explosion proof cast aluminum
(up to 250°F ambient)
H Explosion proof cast aluminum
(up to 500°F ambient)
X Explosion proof cast aluminum (up to 250°F) order separately with transmitter (4 to 20 mA)
Lag Hardware (22D Only), 1/2 NPT,
Stainless or noted.
A
Hex Nipple is 3/4" long
Specify as “A” (standard)
BX
(Straight Nipple), Specify X=3", 6", 9", or 12" max.
EX (Aluminum Union/Nipple Extension), Specify X=min. 3" + 1" increments to 12" max.
FX Same as EX (Stainless Steel Union)
22B
_
_
10
_
_
4
_
_
I
_
_
S
_
_
6
_
_
B
_
_
4
_
_

G
_
_
    Typical write-up for 22B
22D
_
_
11
_
_
4
_
_
S
_
_
H
_
_
8
_
_
C
_
_
4
_
_
H
_
_
B3
_
_
Typical write-up for 22D


Lag A, BX, EX, FX
