DATA SHEET R-HD
_
_
_

• Heavy Duty for
  Hostile Environments

• Non-penetrating

• Weld, Bolt or Clamp in Place

_
_ _

Operating Temperature Range
For S [standard]: –200°C to 260°C (–320°F to 500°F),
For H [high]: 0°C to 480°C (32°F to 900°F)
Sensing Element
The standard sensing element is platinum with a
resistance of 100Ω at 0°C with a temperature coefficient
of resistance 0.00385 Ω/Ω/°C nominal
(IEC 751).
Interchangeability
±0.1Ω (±0.25°C) or 0.4% of temperature,
whichever is greater.
Stability
The sensor will have less than 0.05°C drift per year
at rated service temperature with proper mounting.
Time Response
8 seconds for the sensor to reach 63.2% of a step
change in temperature in water flowing at 3 feet
per second transverse to the sensor.
TM-E-644)

Self-Heating
The bare sensor will rise less than 1°C while dissipating
power of 35 milliwatts in still air.
(ASTM-E-644)
Insulation Resistance
The insulation resistance between outer sensor housing
and the common leadwires is: 50 megohms with 50 VDC
applied to a dry sensor at room temperature.
(ASTM-E-644)
Lead Wire
S: #22 AWG stranded nickel plated copper
TFE Teflon® insulated, 3-wire configuration.
H: #22 AWG stranded nickel plated copper
fiberglass insulated, 3-wire configuration.
Mounting
Sensors can be bolted, clamped or welded into place.
Reference Data
For installation and mounting considerations refer to
Application Note AN-S

Teflon® is a registered trademark of Dupont

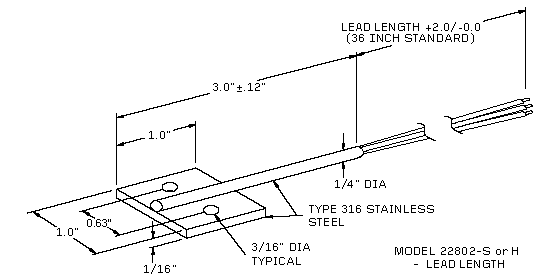

22802 Heavy Duty Surface RTD
  Operating Temperature Range
S
H
Standard (–200°C to +260°C)
High (0°C to 480°C)
  Lead Length (36 inch standard) – Specify in Inches
_
22802
_
_
-
S
_
_
-
36
_
_
- Typical Write-Up for 22802

RdF Corporation • 23 Elm Ave., Hudson, NH 03051-0490
800.445.8367 • 603.882.5195 • fax 603.882.6925 • www.rdfcorp.com
