DATA SHEET R-SCAP
_
_

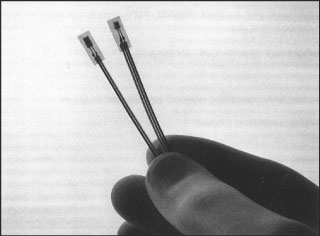

These low cost, sealed platinum surface RTDs
are the world’s toughest.

The IEC 751 sensor is refractory sealed for ±0.05°C stability. Its small strong design allows this package to conform on curved surfaces for accurate response in milliseconds. Leads welded within the sealed RTD provide this sensor’s durablity. Moisture resistance for condensing environments or shallow immersion is provided by Kapton®/Teflon® lamination that completely encapsulates the assembly and lead entrance. Standard operating range is –200°C to 260°C. Clamped sensors can withstand 315°C.
_
_ Strong welded leads
_ Full platinum RTD stability
_ Tough
_ Completly sealed to condensation
 _ Strain isolated
_ Temperature range is –200°C to 260°C
_ Time constant is 0.3 seconds on metal surfaces
_ Long-term stability better than 0.05°C (0.02Ω) per 5 years

Temperature Range
–200°C to 260°C (–320°F to 500°F)
Sensing Element
International grade thin film platinum
a = 0.00385 Ω/Ω/°C per IEC 751
Ice Point Resistance
100 ± 0.12Ω or 1000 ± 1.2Ω,
International Class B, (±0.12%)
Time Constant
<0.3 Seconds on metal surfaces
Self-Heating
>15 mW/°C mounted
Interchangeability
±(0.3°C @ 0°C + 0.005 |t|°C)
IEC 751 Class B above –50°C
Long Term Stability
Better than 0.05°C (0.02W)
per 5 years, above –50°C

Insulation Resistance
>50 MegOhms at 50VDC at 25°C
Maximum Current
100Ω = 5 mA, 1000Ω = 2 mA
for limited seIf heating
Recommended Current
1 mA maximum
Case Material
Kapton® Sensor is refractory
passified overall before lamination
Lead Material
28 AWG nickel-coated, stranded copper
PFA Teflon® insulated parallel conductors

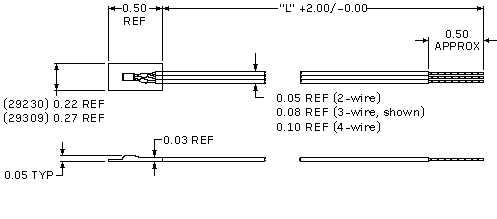

Size Reference
0.22"/0.27" (4-wire) wide x 0.5" long
Thickness over sensor: 0.05"
Thickness over leads: 0.03"
Teflon® and Kapton® are registered trademarks of Dupont


   29230   RTD with PFA Teflon® insulated ribbon leads, 2 or 3-wire
   29309   RTD with PFA Teflon® insulated ribbon leads, 4-wire

     RESISTANCE SPECIFICATION @ 0°C
    T01     100Ω ± 0.12Ω, 0.07" x 0.1" sensor
    T10     1000Ω ± 1.2Ω, 0.08" x 0.13" sensor

      NUMBER OF LEADS
      A       2-wire (29230 only)
      B       3-wire (29230 only)
      C       4-wire (29309 only)

   LEAD LENGTH in inches (12 inches standard)


_
_
29230
_
_
–
T10
_
_
–
A
_
_
–
72
_
_
–   Typical write-up for 29230 _
_
29309
_
_
–
T01
_
_
–
C
_
_
–
12
_
_
–   Typical write-up for 29309
