DATA SHEET R-MINI
_
_

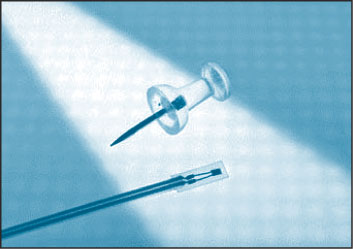

Low cost, flexible, sealed platinum RTD is the world's smallest and toughest.

This 100Ω DIN-IEC sensor is refractory sealed for ±0.05°C stability. Its extremely small and thin design allows this flexible package to easily conform on complex surfaces for accurate response in milliseconds. Platinum ribbons welded within the sealed RTD provide flexibility and toughness. Moisture resistance for condensation and shallow immersion is provided by Kapton®/Teflon® lamination that completely encapsulates the assembly and lead entrance. Standard operating range is –200°C to 260°C. Clamped sensors can withstand 315°C.
_
_ Strong welded leads
_ Full platinum RTD stability
_ Flexible, tough and durable
_ Best for small radius surfaces and tubes
_ Completely sealed
 _ Recommended for condensing environments
_ Strain isolated
_ Temperature range is -200°C to 260°C
_ Time constant is <0.2 seconds on metal surfaces
_ Long-term stability better than 0.05°C (0.02Ω) per 5 years

Temperature Range
–200°C to 260°C (–320°F to 500°F)
Sensing Element
International grade thin film platinum
a = 0.00385 Ω/Ω/°C per IEC 751
Ice Point Resistance
100 ± 0.12Ω or 1000 ± 1.2Ω,
International Class B, (±0.12%)
Time Constant
<0.3 Seconds on metal surfaces
Self-Heating
>15 mW/°C mounted
Interchangeability
±(0.3°C @ 0°C + 0.005 |t|°C)
IEC 751 Class B above –50°C
Long Term Stability
Better than 0.05°C (0.02W) per 5 years, above –50°C

Insulation Resistance
>50 MegOhms at 50VDC at 25°C
Maximum Current
100Ω = 5 mA, 1000Ω = 2 mA for limited seIf heating
Recommended Current
1 mA maximum
Case Material
Kapton® Sensor is refractory passified overall
before lamination
Lead Material
28 AWG nickel-coated, stranded copper
PFA Teflon® insulated parallel conductors

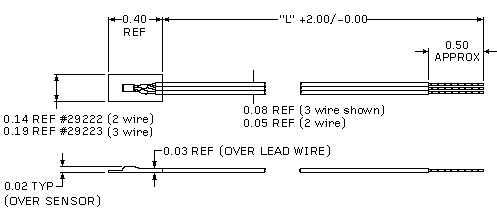

Size Reference
0.22"/0.27" (4-wire) wide x 0.5" long
Thickness over sensor: 0.05"
Thickness over leads: 0.03"

Teflon® and Kapton® are registered trademarks of Dupont




   29222     2 wire 100Ω thin film platinum
   29223     3 wire 100Ω thin film platinum

     RESISTANCE SPECIFICATION @ 0°C
     A      100Ω ± 2Ω a = 0.00385 Ω/Ω/°C
     B      100Ω ± 12Ω a = 0.00385 Ω/Ω/°C

   LEAD LENGTH in inches (12 inches standard)
_
_
29222
_
_
–
A
_
_
–
12
_
_
–   Typical write-up for 29222 _
_
29223
_
_
–
B
_
_
–
12
_
_
–   Typical write-up for 29223
