ThermowellsThermowell Ordering SpecsAccessory Ordering Specs
Thermowells, Connection Heads & Compression Fittings

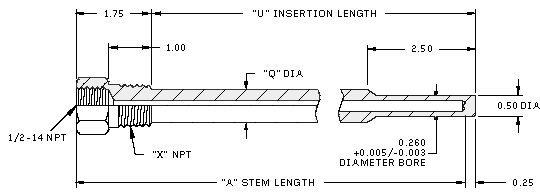

Thermowell - Type S - Standard Well, No Lag







_
  TYPE S – Standard Well, No Lag

  “X” NPT

  “Q” DIAMETER

  3/4"

  3/4

  1"

  7/8



_

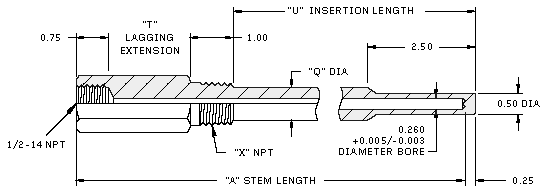

Thermowell - Type L - Standard Well with Lag







_
  TYPE L – Standard Well With Lag

  “X” NPT

  “Q” DIAMETER

  1/2"

  5/8" (“T” = 0.5" min.)

  3/4"

  3/4"

  1"

  7/8"



_

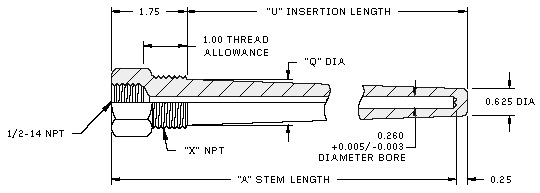

Thermowell - Type H - Heavy Duty, No Lag







_
  TYPE H – Heavy Duty, No Lag

  “X” NPT

  “Q” DIAMETER

  3/4"

  7/8"

  1"

  1 1/16"



_

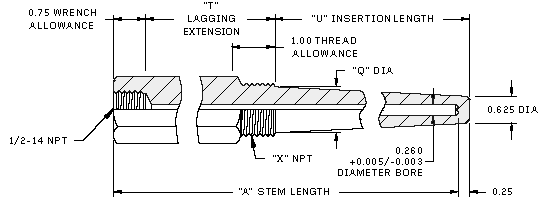

Thermowell - Type T - Heavy Duty with Lag







_
  TYPE T – Heavy Duty with Lag

  “X” NPT

  “Q” DIAMETER

  3/4"

  7/8"

  1"

  1 1/16"



_

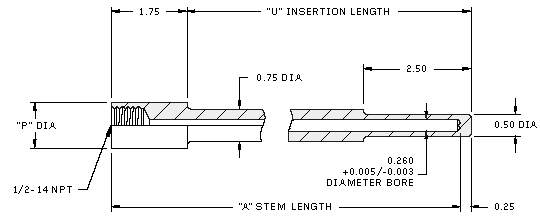

Thermowell - Type W - Socket Weld







_
  TYPE W – Socket Weld

  PIPE SIZE

  “P” DIAMETER

  3/4"

  1.050"

  1"

  1.315"



_

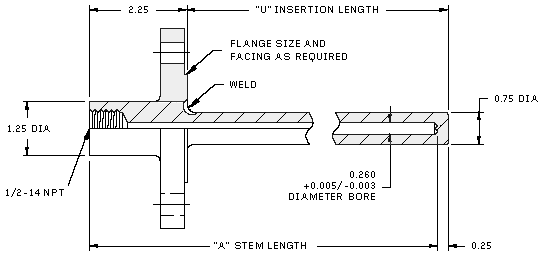

Thermowell - Type F Flanged







_
  TYPE F – Flanged


_

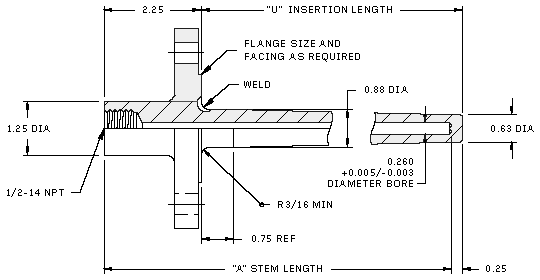

Thermowell - TYPE G







_
  TYPE G – Flanged Heavy Duty

_
