Industrial Platinum RTD Series 218

_ _

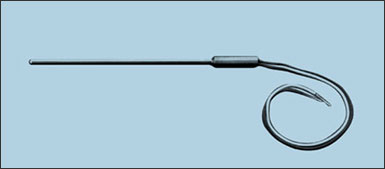

Series 218
Model Number
_218A

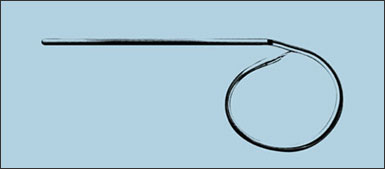

Series 218
Model Number
_218T

_ _



The Series 218, with its 1/8" diameter sheath further supplements the versatile
Series 21 RTDs which have a probe diameter of 1/4". The 1/8" diameter offers
the advantage of faster response while the strain-free construction, high accuracy
and stability offer long-term reliability.

The Series 218 RTDs are versatile and can be used in many different applications.
They are offered with premium strain-free wire-wound sensing elements in Reference
and International grade platinum having 100 and 200 ohm resistance values with tolerances of ±0.1%. Extra-tight tolerances are available. They are also offered in
IEC 751/DIN International Grade B Thin Film Elements. The probes are available in
2, 3, and 4 wire configurations with Teflon® or optional fiberglass insulation.

All Series 218 probes can be used with adjustable compression fittings.
