R-MICRO // RTD CAPSULES
_ _
_ _
Overview of RdF Temperature Sensor Applications
The Entire RdF Product Catalog, Online, and with Printer-Friendly Versions of Each Data Sheet
Informative Articles with RdF Temperature Sensor Application Information
_
All about RdF Corporation; History, Reps & Distributors, Location
Coming Soon!
Coming Soon!
_
Overview Performance Specs Ordering Specs
HTML Printer Friendly /Help with Printing

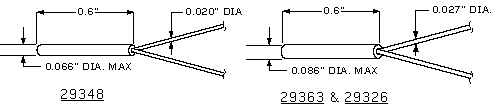

Dimensional Drawing Micro-Capsule Drawing

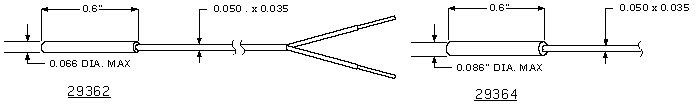

Micro-Capsule Drawing
Ordering Specifications
  29348   Moisture Proof, <0.066" diameter x 0.6" long SST with individual 34 AWG PTFE Teflon® leads, 200°C (390°F)
  29362   <0.066" diameter x 0.6" long SST, 30 AWG cable, fiberglass over each/fiberglass overall, 510°C (950°F)
  29363   Moisture Resistant, <0.086" diameter x 0.6" long alumina, individual 30 AWG PTFE Teflon® leads, 200°C (390°F)
  29326   <0.086" diameter x 0.6" long alumina with individual 28 AWG Kapton® leads, 350°C (660°F)
  29364   <0.086" diameter x 0.6" long alumina, 30 AWG cable, fiberglass over each/fiberglass overall, 510°C (950°F)

     RESISTANCE SPECIFICATION @ 0°C
     T01   100 Ω ±0.12 Ω (a = 0.00385 Ω/Ω/°C International Grade IEC 751 Class B)
     T10   1000 Ω ±1.2 Ω (a = 0.00385 Ω/Ω/°C International Grade IEC 751 Class B)

      LEAD LENGTH in inches (12" std)



_
_
29348
_
_
–
T10
_
_
–
12
_
_
– Typical write-up for 29348 _
_ _
29362
_
_
–
T01
_
_
–
60
_
_
– Typical write-up for 29362


_
