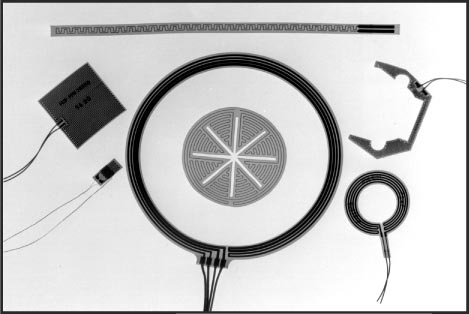

  Flex Heaters

_ _

  Specifications


Temperature Range
–100°C to 200°C (FEP)
–100°C to 350°C (Polyimide)

Insulation
Kapton®/FEP construction
Kapton®/Polyimide construction

Resistance Tolerance
±10%

Watt Density
up to 40 W/in2, typical
up to 80 W/in2, Polyimide to 200°C

Thickness
0.010" maximum over heater

Flexibility
0.3" minimum bend radius



Out-gassing
TML1<1%, CVCM2 <0.1%

Leadwire
Stranded nickel plated copper,
TFE Teflon® insulation
per MIL-W-16878
Kapton® or fiberglass insulation

Dialectric Strength
1250 VAC

Maximum Size
6" x 11"







1 TML = Total Mass Loss
2 CVCM = Combustible Volatile Condensate Material

Kapton® is a registered trademark of DuPont Corporation
